Vertical Security Automatic Disables Turnstiles Controller RFID Card Open Cargo Stainless Steel Customized Door
Skontaktuj się ze mną o darmowe próbki i kupony.
Co to jest?:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.
xSzczegóły Produktu
| Typ kontroli dostępu | Karta RFID, odcisk palca | Czas otwarcia bariery | 0,2 sek |
|---|---|---|---|
| Interfejs komunikacyjny | RS-232, RS485, TCP/IP | Kierunek operacji | 2-drożny |
| silnik barierowy | silnik bezszczotkowy | Poziom ochrony | IP54 |
| Funkcja obrotu | Unikanie kolizji | Wymiar | 1400*120*1000 mm (l*w*h) |
| Typ wyświetlacza | Ekran LCD | szerokość pasa | 55-130 cm |
| Zasilanie | AC 110 ~ 240 V 10% 50/60 Hz | Materiał obudowy | Stal nierdzewna 304 |
| Kąt wahacza | 180 stopni | Optymalny przepływ | 40 osób/min (otwarte), 35 osób/min (zamknięte) |
| Wilgotność robocza | 30%~95% | ||
| Podkreślić | stainless steel vertical security turnstiles,RFID card access swing barrier gate,customized automatic disables turnstiles controller |
||
opis produktu

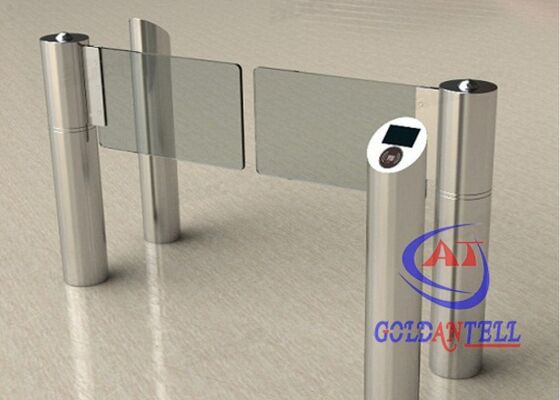

Vertical Security Automatic Turnstiles
Advanced RFID-controlled security turnstiles with stainless steel construction and customizable options for various access control applications.
Product Overview
- Custom silk printing logo available
- Bi-directional or single-way operation options
- Built-in mechanical lock prevents forced opening
- Panel materials: Stainless steel, acrylic plate, or tempered glass
- Ideal for commercial buildings, airports, metro stations, libraries, factories, and government institutions
- Modern, elegant design with contactless access control solution
Technical Specifications
| Specification | Details |
|---|---|
| Cabinet Dimension | Diameter: 168mm, Height: 1050mm |
| Cabinet Material | 304 stainless steel (316 stainless steel available) |
| Power Supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Opening/Closing Time | 0.2 seconds |
| Arm Material | 10mm Acrylic, tempered glass, or steel |
| Access Mode | Single in/out or bidirectional |
| Passthrough Width | 550mm - 1800mm (pair) or 60-90mm (single) |
| Swing Arm Angle | 180 degrees |
| Communication Interface | RS485, TCP/IP |
| Optimal Flow Rate | 40 persons/min (open), 35 persons/min (closed) |
| MCBF | 5,000,000 cycles |
| Working Humidity | 30% - 95% |

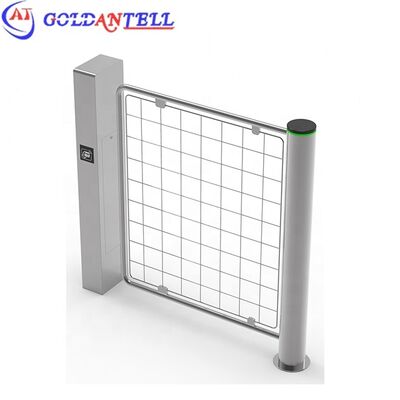

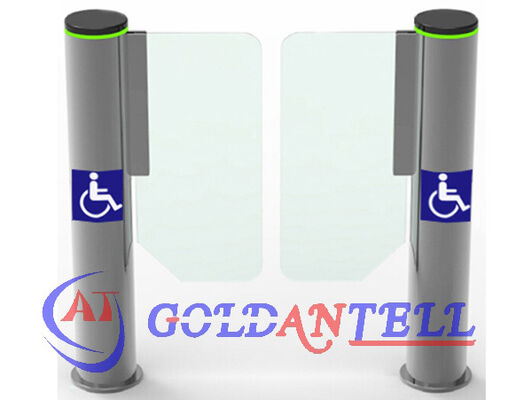

Product Display
Custom Design Options
Reference design with customizable height and width of passageway to meet specific site requirements.
Security Features
- Multiple alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
- Bi-directional or single way operation
- Automatic gate opening during power failure for fire safety
- Anti-tailgating feature prevents unauthorized entry
- Wings open automatically during power interruption
- Fast opening and closing response time
- Built-in mechanical lock for enhanced security

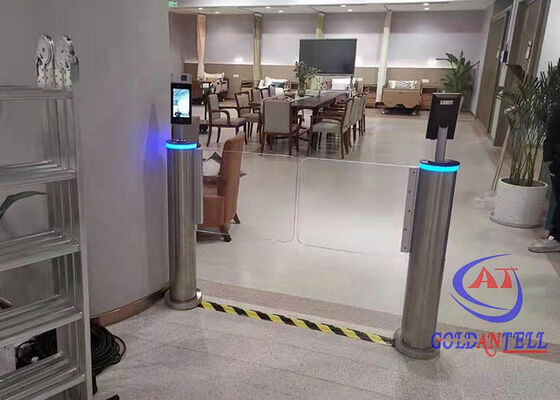

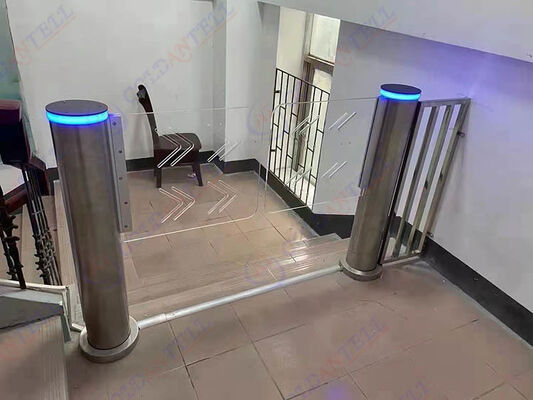

Application Sites
Exhibition halls, commercial buildings, parks, offices, public places, stadiums, libraries, museums
Frequently Asked Questions
Payment Terms: T/T, Western Union, LC, PayPal
Quality Control: Comprehensive quality control from beginning to end
Outdoor Use: Waterproof function enables outdoor installation
Warranty: One-year guarantee with lifetime technical support
Payment Method: Flexible terms based on order amount
Packing Details
- Export: Wooden case package with pearl wool and plastic wrap
- Domestic: Bubble wrap with carton or pearl wool with wooden packaging
- Professional, environmentally friendly packaging services
Why Choose Our Turnstiles
Our Comprehensive Services
- Pre-sale: Detailed communication and product information
- On-purchase: Production updates with photos and testing videos
- After-sale: Installation guides, manuals, and detailed videos
- OEM/ODM: Over 10 years experience with custom logos, sizes, and colors
- Professional Support: 16-hour response time for all inquiries
Contact Details
Contact Person: Vivian Zhou
WhatsApp: +86 13699796334
WeChat: junziyouxin
Skype: goldantell02
Company Information
Shenzhen Goldantell Technology Co., Ltd is a leading exporter and supply chain service provider of intelligent turnstiles, access control systems, and parking management products since 2007.
We specialize in customized products and OEM services with new designs released annually.
Our Services & Strengths
- Professional design team with OEM and ODM capabilities
- CE approved with successful European government project experience
- Experienced sales team with over 4 years in turnstile trade
- Competitive pricing with high-quality standards and excellent after-sales service
- Custom product development and complete access control system solutions
