Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate

  • Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate
  • Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate
  • Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate
  • Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate
  • Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate
  • Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate
Miejsce pochodzenia Guangdong, Chiny
Nazwa handlowa Goldantell
Numer modelu GAT-206
Minimalne zamówienie 2
Cena $1,126-1,155

Skontaktuj się ze mną o darmowe próbki i kupony.

Co to jest?:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Przełączanie zasilania AC220 ± 10%V 50 Hz lub AC110 ± 10%V 60 Hz Tworzywo 304 stal nierdzewna
Rozmiar 1200 * 300 * 1000 mm Temperatura pracy -15 ° C do 75 ° C.
Sygnał wejściowy DC12V/Dry/Contact/RS485/RS232/Remote Szerokość kanału pojedyncze skrzydło 600 mm; Podwójne skrzydło 900 mm
Silnik napędowy Silnik bezszczotkowy DC Czas otwarcia klapy 0,6-0,8s
Długość klapy 285 mm Tryb dostępu pojedyncze w/out lub dwukierunkowe
Natężenie przepływu 40 osób/min (otwarte), 25-30 osób/min (zamknięte) Odresetowanie czasu domyślnie 10s
Ocena IP IP54 Auto-odwrotność klapy Wykryto przeszkodę czujnika IR
Awaria zasilania awaryjnego Klapy automatycznie otwierają
Podkreślić

IP54 Waterproof Optical Turnstile

,

1200x300x1000mm Security Turnstile Gate

,

Intelligent QR Code Access Flap Barrier Turnstile
Zostaw wiadomość
opis produktu

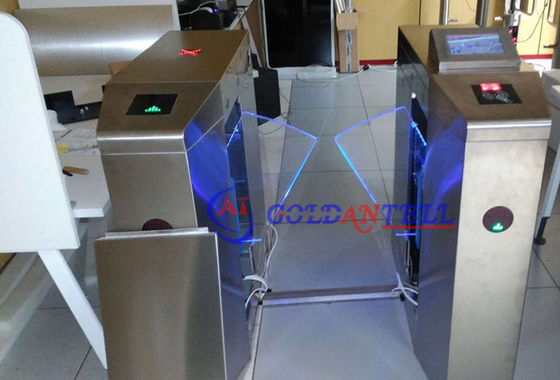

Entrance Intelligent QR Code Access Door Safety System Optical Turnstile Mechanism
Goldantell intelligent Series of turnstile gates with excellent design and good performance are produced by utilizing innovative technology and high quality material, are available with unique features for wide range of security, commercial and industrial applications to meet customer satisfaction.
Key Features
  • Constructed with 304 stainless steel (316 stainless steel available upon request)
  • IP54 waterproof rating with elegant, anti-rust design
  • CE Certified for quality assurance
  • Compatible with RFID, fingerprint, QR/barcode, and ESD access control systems
Safety Features
  • Anti-pinching protection: Flap wing automatically reverses when IR sensor detects obstacles
  • Anti-tailgating/anti-retrogradation: Flap pauses when obstacles are detected during closing
  • Auto-close timer: Prevents unauthorized entry after delay period
  • LED indicators: Visual status display (green arrow = available, red cross = closed)
  • Emergency evacuation: Flaps open automatically during power failure
  • Flexible integration: Supports installation of RFID readers, barcode scanners, or fingerprint readers
Technical Specifications
Item No. GAT-206
Cabinet Dimensions 1200 (L) × 300 (W) × 1000 (H) mm
Material 304 stainless steel (316 ss optional)
Power Supply AC220±10%V 50Hz or AC110±10%V 60Hz
Flap Operation Time 0.6-0.8 seconds
Flap Length 285 mm (extendable for disabled access)
Access Mode Single in/out or bidirectional
Flow Rate 40 persons/min (open), 25-30 persons/min (closed)
Reset Time Default 10s (adjustable)
Display 7-inch screen shows date, time, and entry events
Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 0 Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 1
Customization Options
  • Flap arm colors available in red, blue, black, or transparent with LED lighting
  • Dual reading window design for RFID reader and barcode scanner
System Demonstration Videos
Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 2
Facial recognition
Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 3
RFID Card Reader
Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 4
ESD Tester + IC/ID card
Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 5
Fingerprint Reader

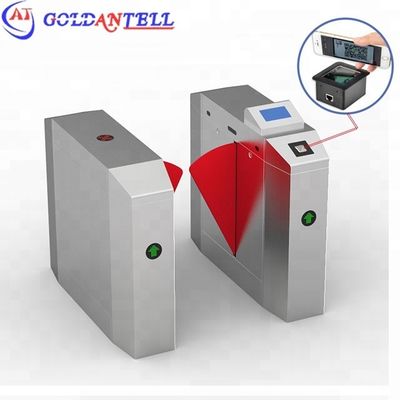

QR Code Access Control
All our turnstile gates can be equipped with QR code readers (dual RFID card reader optional).
Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 6
Tripod Turnstile Type
Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 7
Swing Turnstile Type

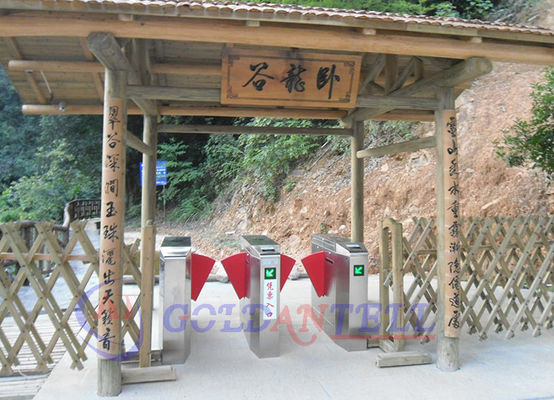

Applications
Our flap turnstile barrier series are suitable for:
  • Subway stations and transportation hubs
  • Airports and seaports
  • Tourist attractions and sports venues
  • Exhibition centers and swimming halls
  • Residential areas and corporate entrances
  • Attendance and access control systems
Note: Optical turnstiles with colorful LED lighting are not recommended for outdoor or seaside installations.
Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 8 Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 9 Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 10 Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 11 Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 12
Trade Terms
  • Offer valid for 30 days
  • Delivery within 7 days after payment confirmation
  • Payment methods: T/T, LC, Western Union, Escrow, PayPal
  • Packaging: Carton box + wooden case/crate
Delivery Details
  • Sea freight: 15-60 days (varies by destination)
  • Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
  • Air cargo: 2-7 days
Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate 13
